Residential · n-type TOPCon · Bifacial · Black frame

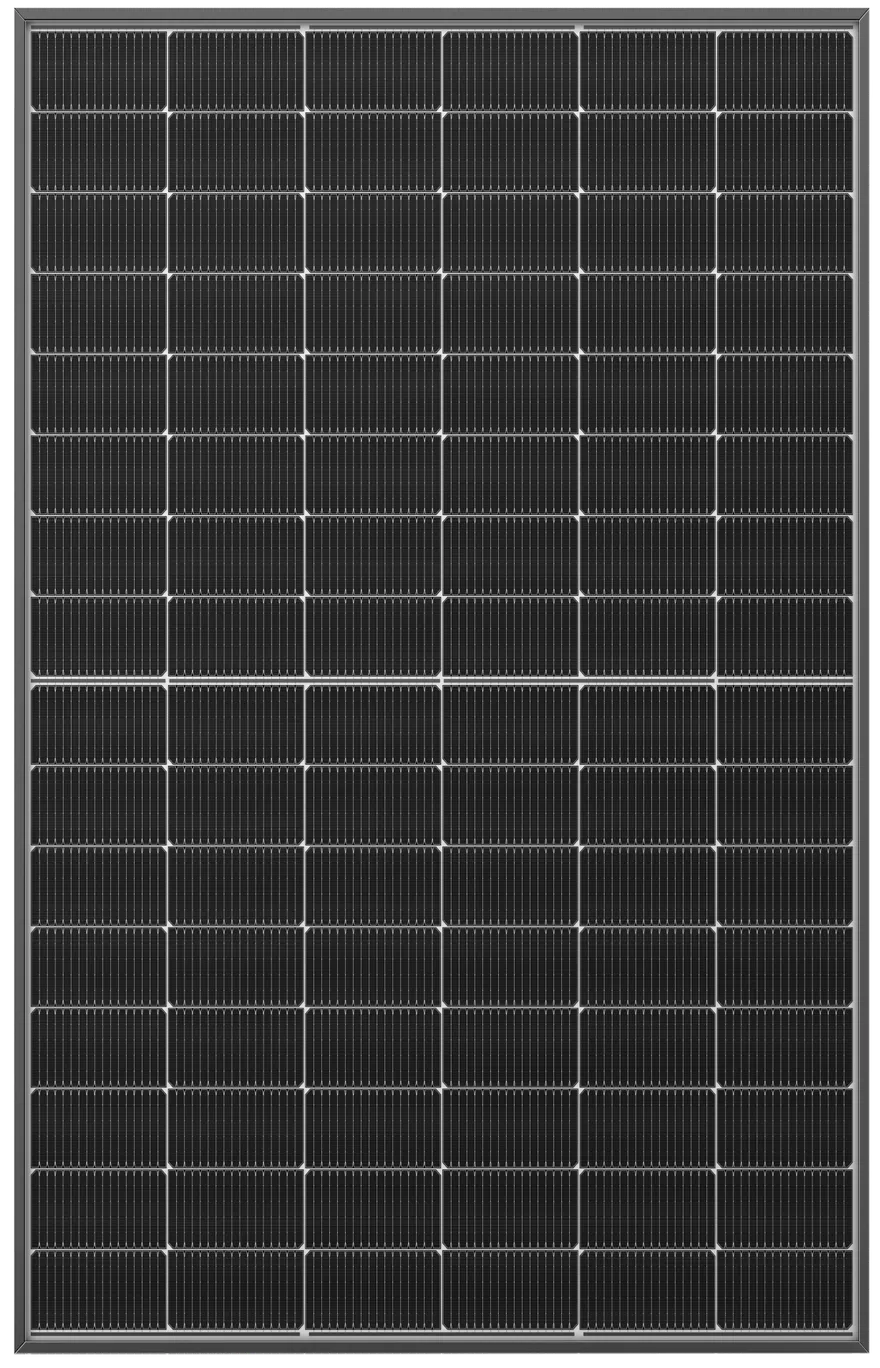

RSM96-11-475BNDG
Compact 475 W bifacial module in an all-black frame — the same n-type TOPCon cell technology as our utility flagships, sized for Australian and New Zealand homes.
- 475
- Watts peak
- 23.8%
- Max efficiency
- 25 / 30 yr
- Product / power warranty
- −0.29%/°C
- Temp coefficient (Pmax)
Why this product
- Compact 1762 × 1134 mm format at just 21.5 kg — ideal for rooftop handling
- Black anodized frame for a premium roofline appearance
- Bifacial dual-glass with up to 10% rear-side gain (bifacial factor 80±5%)
- 25-year product warranty and 30-year linear power warranty — 0.4% annual degradation
- Excellent anti-LID, anti-PID and weak-light performance
- Power tolerance of ±3%
Electrical (STC)
- Rated power (Pmax)
- 475 Wp
- Module efficiency
- 23.8%
- Open-circuit voltage (Voc)
- 36.42 V
- Short-circuit current (Isc)
- 16.52 A
- Max power voltage (Vmpp)
- 30.78 V
- Max power current (Impp)
- 15.46 A
- Power tolerance
- ±3%
- Bifacial factor
- 80 ± 5%
- Equivalent power with 10% rear gain
- 523 Wp
Mechanical
- Cell technology
- n-type TOPCon, 96 cells (6×8 + 6×8)
- Dimensions
- 1762 × 1134 × 30 mm
- Weight
- 21.5 kg
- Glass
- 1.6 mm AR-coated heat-strengthened front · 1.6 mm rear
- Frame
- Anodized aluminium alloy, black
- Junction box
- Potted, IP68, 3 bypass diodes
- Connector
- MC4 EVO2 / PV-SY02 / others (standard MC4)
- Max mechanical load
- 5400 Pa front / 2400 Pa back
Temperature & ratings
- Temperature coefficient (Pmax)
- −0.29%/°C
- Temperature coefficient (Voc)
- −0.25%/°C
- Operational temperature
- −40°C ~ +85°C
- Max system voltage
- 1500 VDC
- Max series fuse rating
- 35 A
- NMOT
- 44°C ± 2°C
Warranty
- Product warranty
- 25 years
- Performance warranty
- 30 years linear · 0.4% annual degradation
- Guaranteed output, year 30
- 87.4%
- Eligibility
- Rooftop market in Australia and New Zealand
Specifications from official Risen documentation. Always confirm against the current datasheet before specifying.
